Our solar PCU has latest MPPT (Maximum Power Point Tracking) charge controller. It enables you to extract maximum from solar power. It is 30% more efficient than a normal PWM based PCU’s.
Priority Setting
Being a bi – directional PCU it allows customers flexibility to set the priority setting based on their requirement of maximum energy saving, power backup only during power cut and power backup through battery in areas where grid supply is not available.
Super Informative User friendly LCD
A user friendly LCD that displays important information like battery time of charge & discharge, Grid Off / available, Priority setting etc.
Safe for your home
Luminous Solar PCU is armed with comprehensive protection features such as short-circuit, reverse polarity, battery over-charge and battery deep-discharge. Its pure sine wave output ensures safety and noiseless operation of connected appliances.
MNRE & IEC compliance
Solar PCU complies with all the National & International standards for safety and efficiency and reliability, such as IEC – 61683, IEC – 60068 – 1,2,14,30, IEC – 60529
Property
Details
Nominal battery bank voltage
120
Max usable current from solar (A)
65
Usable current from grid (A)
30
Hybrid charging : Charging from both mains and solar
1)
Selectable source priority: Choose source priority from solar, battery and grid
2)
Compliance to IEC standards for safety, reliability and quality
Property
Details
Rated AC power - 230V, 33A, Single phase
Max Supported Panel Power - 8250 Wp, Input Voltage Range (Vmp) - 160-230V
Charge Controller – MPPT, Input Voltage 180-300 Voc
Nominal Battery Bank Voltage – 120V (Supports 2 Batteries)
Smart device with remote Monitoring through mobile app.
Intelligent system with 32 bit DSP Controller which enables it to handle multiple algorithms efficiently
Inbuilt MPPT charge controller extracts upto 30% more power from Panels
Inbuilt isolation transformer to protect from grid surges and noise
Selectable source priority: Choose source priority from solar, battery and grid
User friendly Informative LCD Display for time charging, Supply etc
Your Cart
Product Description

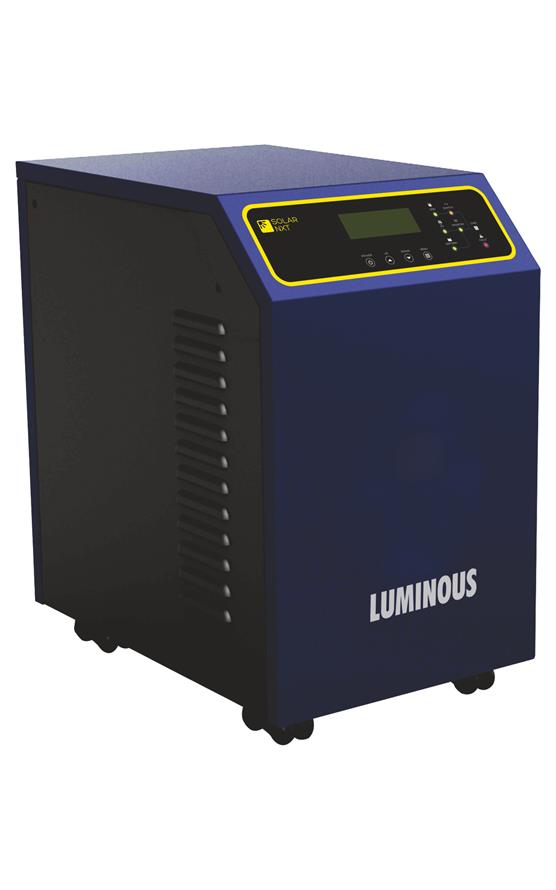

Luminous Solar Power conditioning Unit (PCU) is a powerful hybrid solar inverter with advanced mppt technology based solar charge controller, Digital display, and purely safe form short-circuits. 7.5 kW solar PCU is Industrial design, heavy built for running power load such as 2 Air- conditioners and lighting load such as fans, lights, computers, printers, Xerox machine used in home, office and commercial space.
