Use of high quality glass and solar cell surface coating allow for excellent performance even in low-light conditions on cloudy days, mornings and evenings.
Advance EVA Encapsulation
EVA (ethyl vinyl acetate) is used encapsulate material. They are inserted between the solar cells and the top surface and the rear surface for protection. Luminous Solar Panel comes with Multi layer encapsulation that provides better module protection.
Severe Weather Resilience
Luminous Solar Panel offers high torsion resistance against wind load and snow loads. These are waterproof and corrosion resistant.
Best in Class Efficiency
Best in class module conversion efficiency through advanced innovative cell technology. This ensures optimum solar power generation that provides value for money.
PID resistance Technology
PID stands for potential-induced degradation. Caused by stray currents triggered by certain climate conditions; the phenomenon can cause substantial power loss but with PID Resistance Technology, Luminous Solar Panels displays no PID.
Property
Details
Wattage (Wp)
40
Voltage at Max Power, Vmp (V)
18.2
Current at Max Power, Imp (A)
2.2
Open Circuit Voltage, Voc (V)
22
Short Circuit Currrent, Isc (A)
2.4
Product Dimensions (L*W*H)
435x670x34
Property
Details
Advanced EVA encapsulation to give better protection to modules
Best in Class conversion efficiency
Anti reflective coating for more light absorption
Optically, mechanically and electrically tested
High strength Aluminium frame design to offer high torsion resistance
Compliance to IEC standards"
Poly crystalline Cells type Panel
Capacity – 40 W, 12V
Voltage: Voltage at Max Power (Vmax) – 18V, Open Circuit Voltage (Voc) – 22V
Current: Current at Max Power (imax) – 2.23A, Short Circuit Current (isc) – 2.42A
25 years performance warranty.
PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions
Excellent Low light performance in low visibility in clouds, evening, and morning.
Your Cart
Product Description

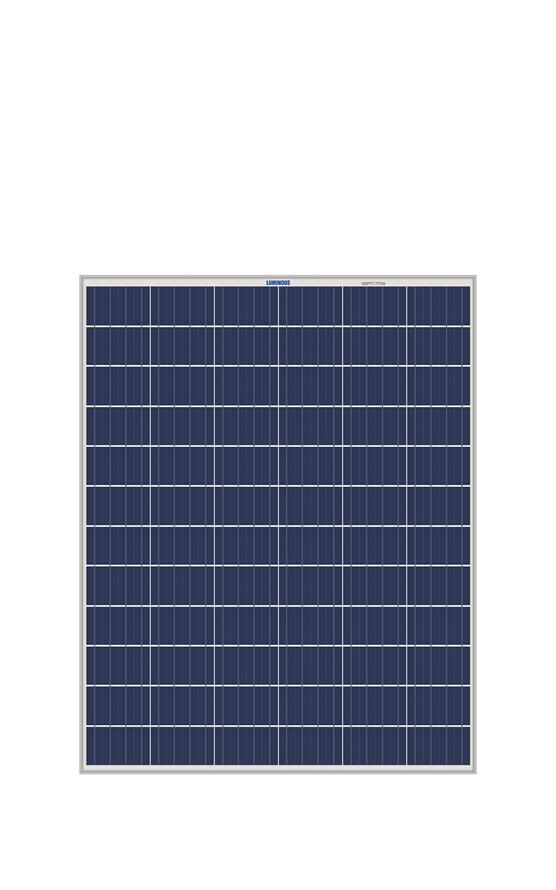

Luminous 40 watt - 12 volt solar panel is used to charge battery up to 20 Ah. It can charge the battery during the day between 9 am - 5 pm. if you looking for solar solution to charge the mobile, run DC appliances such as bulbs, small fan, It is the best mini solar panel from Luminous. it generates 2.2 amps current when sun light falls on solar panel cells.
