Use of high quality glass and solar cell surface coating allow for excellent performance even in low-light conditions on cloudy days, mornings and evenings.
Advance EVA Encapsulation
EVA (ethyl vinyl acetate) is used encapsulate material. They are inserted between the solar cells and the top surface and the rear surface for protection. Luminous Solar Panel comes with Multi layer encapsulation that provides better module protection.
Severe Weather Resilience
Luminous Solar Panel offers high torsion resistance against wind load and snow loads. These are waterproof and corrosion resistant.
Best in Class Efficiency
Best in class module conversion efficiency through advanced innovative cell technology. This ensures optimum solar power generation that provides value for money.
PID resistance Technology
PID stands for potential-induced degradation. Caused by stray currents triggered by certain climate conditions; the phenomenon can cause substantial power loss but with PID Resistance Technology, Luminous Solar Panels displays no PID.
Property
Details
Wattage (Wp)
160
Voltage at Max Power, Vmp (V)
18.32
Current at Max Power, Imp (A)
8.74
Open Circuit Voltage, Voc (V)
22.35
Short Circuit Currrent, Isc (A)
9.39

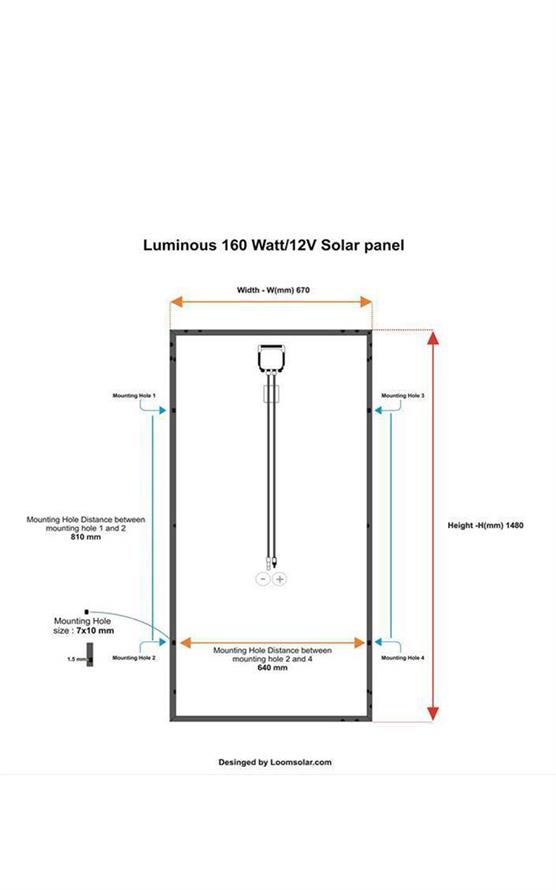

Product Dimensions (L*W*H)
1480x670x34
Property
Details
Advanced EVA encapsulation to give better protection to modules
Best in Class conversion efficiency
Anti reflective coating for more light absorption
Optically, mechanically and electrically tested
High strength Aluminium frame design to offer high torsion resistance
Compliance to IEC standards"
Poly crystalline Cells type Panel
Capacity – 160 W, 12V
Voltage: Voltage at Max Power (Vmax) – 18.32V, Open Circuit Voltage (Voc) – 22.35V
Current: Current at Max Power (imax) – 5.5A, Short Circuit Current (isc) – 9.39A
25 years performance warranty.
PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions
Excellent Low light performance in low visibility in clouds, evening, and morning.
Your Cart
Product Description
Luminous Poly 100W Polycrystalline Solar Panel is a premium quality Solar Panels from Luminous.All Luminous Poly 100W Polycrystalline Solar Panel are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Luminous Poly 100W Polycrystalline Solar Panel, are sourced from the most reliable and official Solar Panels vendors, chosen after performing detailed market surveys. Thus, Luminous products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Luminous Solar Panels.
