Use of high quality glass and solar cell surface coating allow for excellent performance even in low-light conditions on cloudy days, mornings and evenings.
Advance EVA Encapsulation
EVA (ethyl vinyl acetate) is used encapsulate material. They are inserted between the solar cells and the top surface and the rear surface for protection. Luminous Solar Panel comes with Multi layer encapsulation that provides better module protection.
Severe Weather Resilience
Luminous Solar Panel offers high torsion resistance against wind load and snow loads. These are waterproof and corrosion resistant.
Best in Class Efficiency
Best in class module conversion efficiency through advanced innovative cell technology. This ensures optimum solar power generation that provides value for money.
PID resistance Technology
PID stands for potential-induced degradation. Caused by stray currents triggered by certain climate conditions; the phenomenon can cause substantial power loss but with PID Resistance Technology, Luminous Solar Panels displays no PID.
Voltage at Max Power, Vmp (V)
Current at Max Power, Imp (A)
Open Circuit Voltage, Voc (V)
Short Circuit Currrent, Isc (A)
Product Dimensions (L*W*H)
Advanced EVA encapsulation to give better protection to modules
Best in Class conversion efficiency
Anti reflective coating for more light absorption
Optically, mechanically and electrically tested
High strength Aluminium frame design to offer high torsion resistance
Compliance to IEC standards"

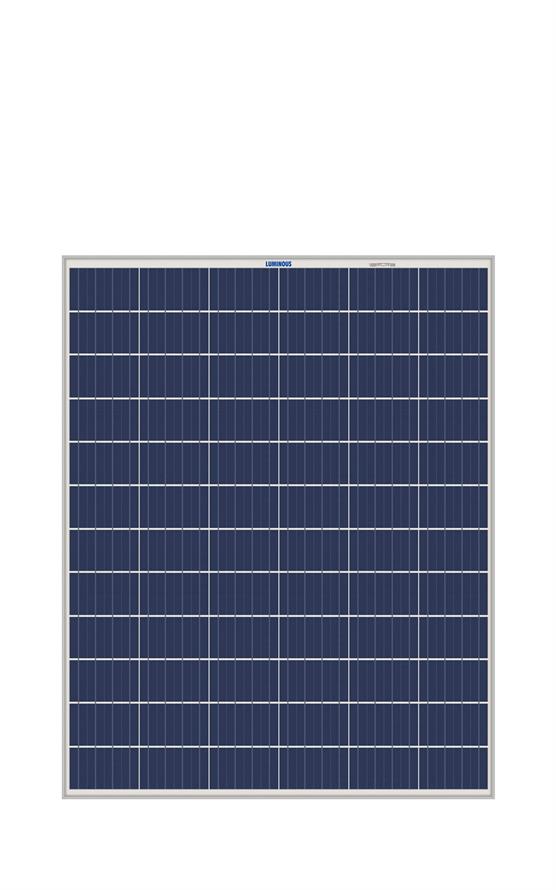

Poly crystalline Cells type Panel
Capacity – 325 W, 24V
Voltage: Voltage at Max Power (Vmax) – 37.39V, Open Circuit Voltage (Voc) – 46.38V
Current: Current at Max Power (imax) – 8.20A, Short Circuit Current (isc) – 8.96A
25 years performance warranty.
PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions
Excellent Low light performance in low visibility in clouds, evening, and morning.
Luminous mono crystalline solar panel 335 Watt - 24 Volt is used to generate electricity from sun. It is the maximum wattage solar panels in Luminous. If you are looking to Install Solar systems for your home or office, this is best solar panel with highest efficiency up to 19%. It generates 8 amps current.
